2011 Harley-Davidson FXS Blackline Softail Edition Review
2011 Harley-Davidson FXS Blackline is one motorcycle issued by the manufacturer Harley Davidson with superlow edition which supported the body design is comfortable to use for touring. 2011 Harley-Davidson FXS Blackline has a capacity of 1584 cc engine with a ratio of bore x stroke 95.3 mm x 111.1 mm. For the type of engine that is engine 3 Air-cooled, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
2011 Harley-Davidson FXS Blackline is one motorcycle issued by the manufacturer Harley Davidson with superlow edition which supported the body design is comfortable to use for touring. 2011 Harley-Davidson FXS Blackline has a capacity of 1584 cc engine with a ratio of bore x stroke 95.3 mm x 111.1 mm. For the type of engine that is engine 3 Air-cooled, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
2011 Harley-Davidson FXS Blackline Test Drive
2011 Harley-Davidson FXS Blackline Righr Angle

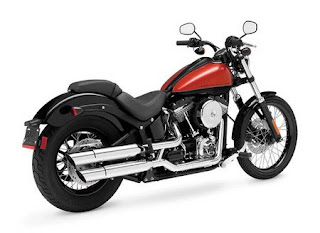

2011 Harley-Davidson FXS Blackline Rear Right Angle
2011 Harley-Davidson FXS Blackline Left Angle
2011 Harley-Davidson FXS Blackline Tank2011 Harley-Davidson FXS Blackline - USA Specifications
U.S. MSRP - Vivid Black $15,499 USD, Two-Tone $15,998 USD
Dimensions
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)
Seat Height:
• Laden2 24 in. (610 mm)
• Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.84 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
• Front – D402F MH90-21 54H
• Rear – D402 MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3 qts. (2.85 L)
Transmission Capacity N/A
Primary Chain
Case Capacity3 1.0 qts. (.95 L)
Weight:
• As Shipped 638.5 lbs. (290 kg)
• In Running Order 682.5 lbs. (310 kg)
• Gross Vehicle 1124 lbs. (510 kg)
Weight Rating
• Gross Axle
Weight Rating:
• Front 414 lbs. (188 kg)
• Rear 710 lbs. (322 kg)
Engine
Engine3 Air-cooled, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.1 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/64 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
• 1st 9.03
• 2nd 6.259
• 3rd 4.649
• 4th 3.764
• 5th 3.207
• 6th 2.706
Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Black Anodized, Profile Laced Aluminum
• Front 21 in. x 2.15 in. (533 mm x 55 mm)
• Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type Patented, uniform expansion rotors
(diameter x width):
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .24 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5.6 in. (143 mm)
• Rear Wheel 3.6 in. (91 mm)
Performance
Engine Torque6 (per SAE J1349):
• North America 89 ft. lbs. @ 3250 RPM (121 Nm @ 3250 RPM)
Lean Angle (per SAE J1168):
• Right 24.4°
• Left 25.9°
Fuel Economy7 (EPA urban/highway test)
35/54 mpg (6.72/4.36 L/100 km)
Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Turn Signal Lights 28W (21W) self-canceling
• Rear Tail/Stop/Turn 8W/28W (5W/21W) self-canceling
Signal Lights
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings
Color Options
Solids
• Vivid Black
Two-Tones
• Cool Blue Pearl/Vivid Black
• Sedona Orange/Vivid Black
Warranty
Warranty9 24 months (unlimited mileage) Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
2011 Harley-Davidson FXS Blackline - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.
Dimensions
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)
Seat Height:
• Laden2 24 in. (610 mm)
• Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.84 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
• Front – D402F MH90-21 54H
• Rear – D402 MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3 qts. (2.85 L)
Transmission Capacity N/A
Primary Chain
Case Capacity3 1.0 qts. (.95 L)
Weight:
• As Shipped 638.5 lbs. (290 kg)
• In Running Order 682.5 lbs. (310 kg)
• Gross Vehicle 1124 lbs. (510 kg)
Weight Rating
• Gross Axle
Weight Rating:
• Front 414 lbs. (188 kg)
• Rear 710 lbs. (322 kg)
Engine
Engine3 Air-cooled, Twin Cam 96BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.1 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/64 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
• 1st 9.03
• 2nd 6.259
• 3rd 4.649
• 4th 3.764
• 5th 3.207
• 6th 2.706
Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Black Anodized, Profile Laced Aluminum
• Front 21 in. x 2.15 in. (533 mm x 55 mm)
• Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type Patented, uniform expansion rotors
(diameter x width):
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .24 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5.6 in. (143 mm)
• Rear Wheel 3.6 in. (91 mm)
Performance
Engine Torque6 (per SAE J1349):
• North America 89 ft. lbs. @ 3250 RPM (121 Nm @ 3250 RPM)
Lean Angle (per SAE J1168):
• Right 24.4°
• Left 25.9°
Fuel Economy7 (EPA urban/highway test)
35/54 mpg (6.72/4.36 L/100 km)
Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Turn Signal Lights 28W (21W) self-canceling
• Rear Tail/Stop/Turn 8W/28W (5W/21W) self-canceling
Signal Lights
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings
Warranty
Warranty9 24 months (unlimited mileage) Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
U.S. MSRP - Vivid Black $15,499 USD, Two-Tone $15,998 USD
Dimensions
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)
Seat Height:
• Laden2 24 in. (610 mm)
• Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.84 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
• Front – D402F MH90-21 54H
• Rear – D402 MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3 qts. (2.85 L)
Transmission Capacity N/A
Primary Chain
Case Capacity3 1.0 qts. (.95 L)
Weight:
• As Shipped 638.5 lbs. (290 kg)
• In Running Order 682.5 lbs. (310 kg)
• Gross Vehicle 1124 lbs. (510 kg)
Weight Rating
• Gross Axle
Weight Rating:
• Front 414 lbs. (188 kg)
• Rear 710 lbs. (322 kg)
Engine
Engine3 Air-cooled, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.1 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/64 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
• 1st 9.03
• 2nd 6.259
• 3rd 4.649
• 4th 3.764
• 5th 3.207
• 6th 2.706
Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Black Anodized, Profile Laced Aluminum
• Front 21 in. x 2.15 in. (533 mm x 55 mm)
• Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type Patented, uniform expansion rotors
(diameter x width):
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .24 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5.6 in. (143 mm)
• Rear Wheel 3.6 in. (91 mm)
Performance
Engine Torque6 (per SAE J1349):
• North America 89 ft. lbs. @ 3250 RPM (121 Nm @ 3250 RPM)
Lean Angle (per SAE J1168):
• Right 24.4°
• Left 25.9°
Fuel Economy7 (EPA urban/highway test)
35/54 mpg (6.72/4.36 L/100 km)
Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Turn Signal Lights 28W (21W) self-canceling
• Rear Tail/Stop/Turn 8W/28W (5W/21W) self-canceling
Signal Lights
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings
Color Options
Solids
• Vivid Black
Two-Tones
• Cool Blue Pearl/Vivid Black
• Sedona Orange/Vivid Black
Warranty
Warranty9 24 months (unlimited mileage) Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
2011 Harley-Davidson FXS Blackline - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.
Dimensions
Length 93 in. (2362 mm)
Overall Width 34 in. (864 mm)
Overall Height 47.3 in. (1201 mm)
Seat Height:
• Laden2 24 in. (610 mm)
• Unladen 26.1 in. (663 mm)
Ground Clearance 5.25 in. (133 mm)
Rake (steering head) 30°
Fork Angle 33.5°
Trail 4.84 in. (123 mm)
Wheelbase 66.5 in. (1689 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
• Front – D402F MH90-21 54H
• Rear – D402 MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3 qts. (2.85 L)
Transmission Capacity N/A
Primary Chain
Case Capacity3 1.0 qts. (.95 L)
Weight:
• As Shipped 638.5 lbs. (290 kg)
• In Running Order 682.5 lbs. (310 kg)
• Gross Vehicle 1124 lbs. (510 kg)
Weight Rating
• Gross Axle
Weight Rating:
• Front 414 lbs. (188 kg)
• Rear 710 lbs. (322 kg)
Engine
Engine3 Air-cooled, Twin Cam 96BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.1 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/64 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
• 1st 9.03
• 2nd 6.259
• 3rd 4.649
• 4th 3.764
• 5th 3.207
• 6th 2.706
Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Black Anodized, Profile Laced Aluminum
• Front 21 in. x 2.15 in. (533 mm x 55 mm)
• Rear 16 in. x 3 in. (406 mm x 76 mm)
Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type Patented, uniform expansion rotors
(diameter x width):
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .24 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5.6 in. (143 mm)
• Rear Wheel 3.6 in. (91 mm)
Performance
Engine Torque6 (per SAE J1349):
• North America 89 ft. lbs. @ 3250 RPM (121 Nm @ 3250 RPM)
Lean Angle (per SAE J1168):
• Right 24.4°
• Left 25.9°
Fuel Economy7 (EPA urban/highway test)
35/54 mpg (6.72/4.36 L/100 km)
Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Turn Signal Lights 28W (21W) self-canceling
• Rear Tail/Stop/Turn 8W/28W (5W/21W) self-canceling
Signal Lights
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings
Warranty
Warranty9 24 months (unlimited mileage) Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
Tidak ada komentar:
Posting Komentar
